What is U-Factor?
U-factor is the number that measures how well a window keeps heat from passing through it. The lower the U-factor, the better the window insulates. For the Maryland and Virginia climate, look for a U-factor of 0.30 or lower.
Jim Dodson, HAAG Master Inspector · #992109047 U-factor (sometimes written U-value) measures the rate at which a window loses heat. It is the inverse of insulating ability: a low U-factor means a well-insulating window, a high U-factor means a leaky one. U-factor is one of the standardized ratings on the NFRC label found on every new window, expressed as a number typically between 0.20 and 1.20. For the Maryland and Virginia climate (ENERGY STAR Northern-Central zone), JDH recommends a whole-window U-factor of 0.30 or lower.
What it does

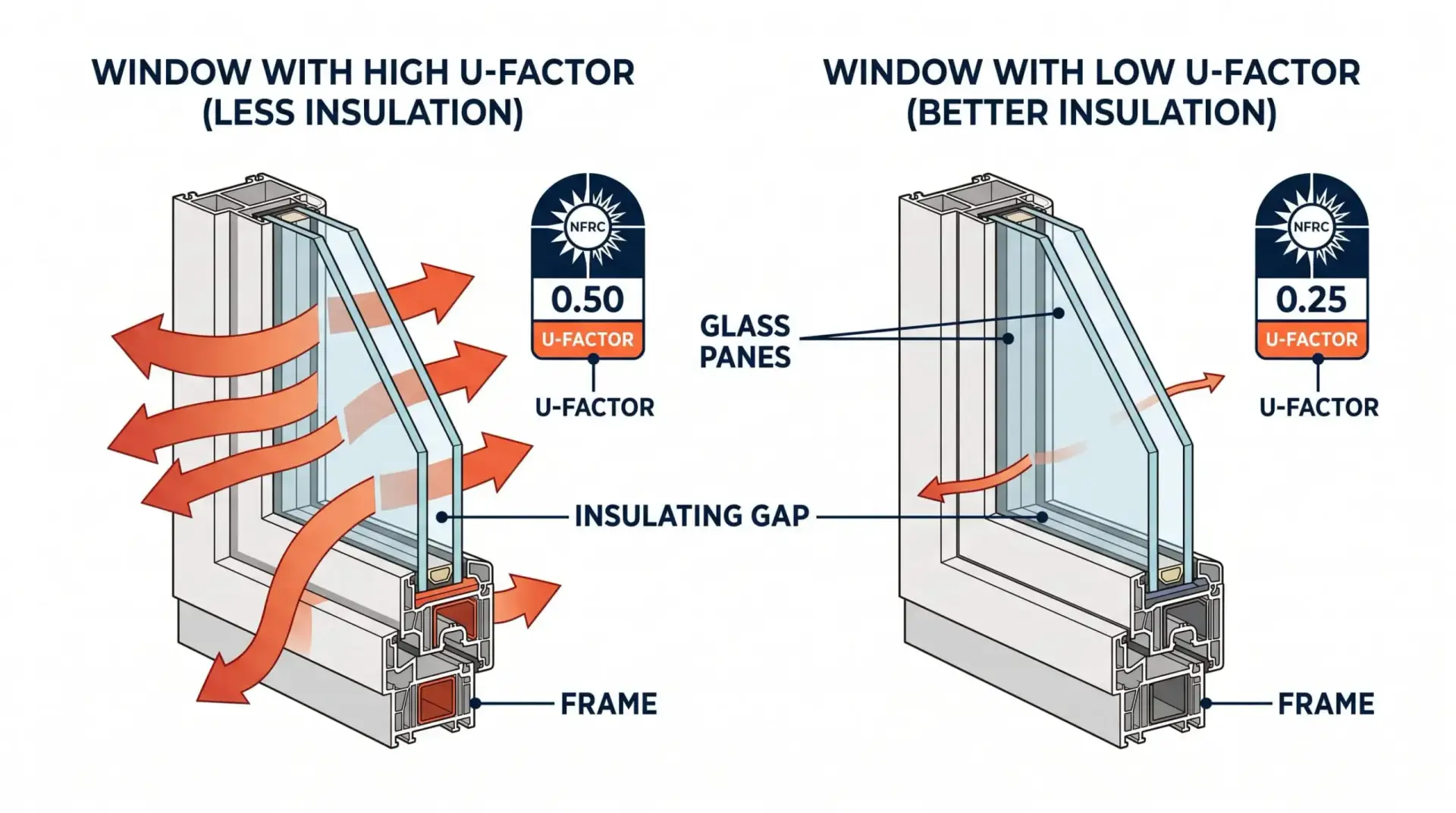

U-factor tells you how much heat will escape through a window in winter (and conduct in during summer). It is a whole-unit measurement: it accounts for the glass, the gas fill between panes, the spacer, and the frame, not just the center of the glass. That distinction matters, because a window can have great glass and a terrible frame and still post a poor whole-window U-factor. The lower the number, the less energy your HVAC system has to spend fighting heat loss through the windows. In a Maryland winter, the difference between a 0.50 U-factor builder-grade window and a 0.27 U-factor quality replacement is a measurably warmer room next to the window and a smaller heating bill.
Where you'll find it
U-factor appears on the NFRC label, the white sticker on the glass of every new window. It is listed in the top-left box, usually as the most prominent number. It also appears on manufacturer spec sheets and the ENERGY STAR qualification line. When JDH quotes a ProVia window, the U-factor for that exact configuration is in the proposal. The number you want to compare is the whole-window U-factor, not the "center of glass" U-factor that some marketing materials quote to make a window look better than it performs.
Common mistakes around U-factor
Comparing center-of-glass instead of whole-window
Some manufacturers advertise the center-of-glass U-factor, which ignores the frame and edges and always looks better. Always compare the NFRC whole-window number. It is the only apples-to-apples figure.
Chasing the lowest U-factor at all costs
In the MD/VA mixed climate, a U-factor around 0.27-0.30 is the sweet spot. Going far below that adds cost without proportionate benefit, and can trade off against solar heat gain (SHGC), which also matters here.
Ignoring U-factor on the frame material
Vinyl and fiberglass frames insulate well; aluminum frames conduct heat badly and drag the whole-window U-factor up. Two windows with identical glass can have very different U-factors because of the frame.
Assuming U-factor survives a bad install
A 0.27 U-factor window installed with gaps and no insulation around the frame performs like a much worse window. The rating assumes a proper install. Air-sealing the rough opening is what makes the number real.
How to use U-factor when buying windows
U-factor is one of the few window specs that is genuinely comparable across brands. When evaluating quotes:
- Find the NFRC whole-window number: ask for it in writing on every quote. If a salesperson only quotes center-of-glass, that is a flag.
- Target 0.30 or lower for MD and VA: this meets ENERGY STAR for our climate zone and qualifies for most efficiency rebates.
- Compare the same window configuration: U-factor changes with size, grid options, and glass package. Compare like for like.
- Pair it with SHGC: U-factor is the heat-loss number; Low-E coatings and SHGC control heat gain. Both matter in our mixed climate.
