What is R-Value?
R-value measures how well insulation resists heat flow. The higher the R-value, the better it insulates. For a Maryland or Virginia attic, the target is roughly R-49 to R-60.
Jim Dodson, HAAG Master Inspector · #992109047 R-value is the standard measure of an insulation material's resistance to heat flow, its "R" is literally for resistance. The higher the number, the more the material slows heat moving through it. R-value is what you compare when choosing insulation, and it is cumulative: adding more insulation adds R-value. It is, roughly, the conceptual inverse of the U-factor used to rate windows. For homes in the Maryland and Virginia climate (Climate Zone 4), the U.S. Department of Energy recommends about R-49 to R-60 in the attic.
What it does

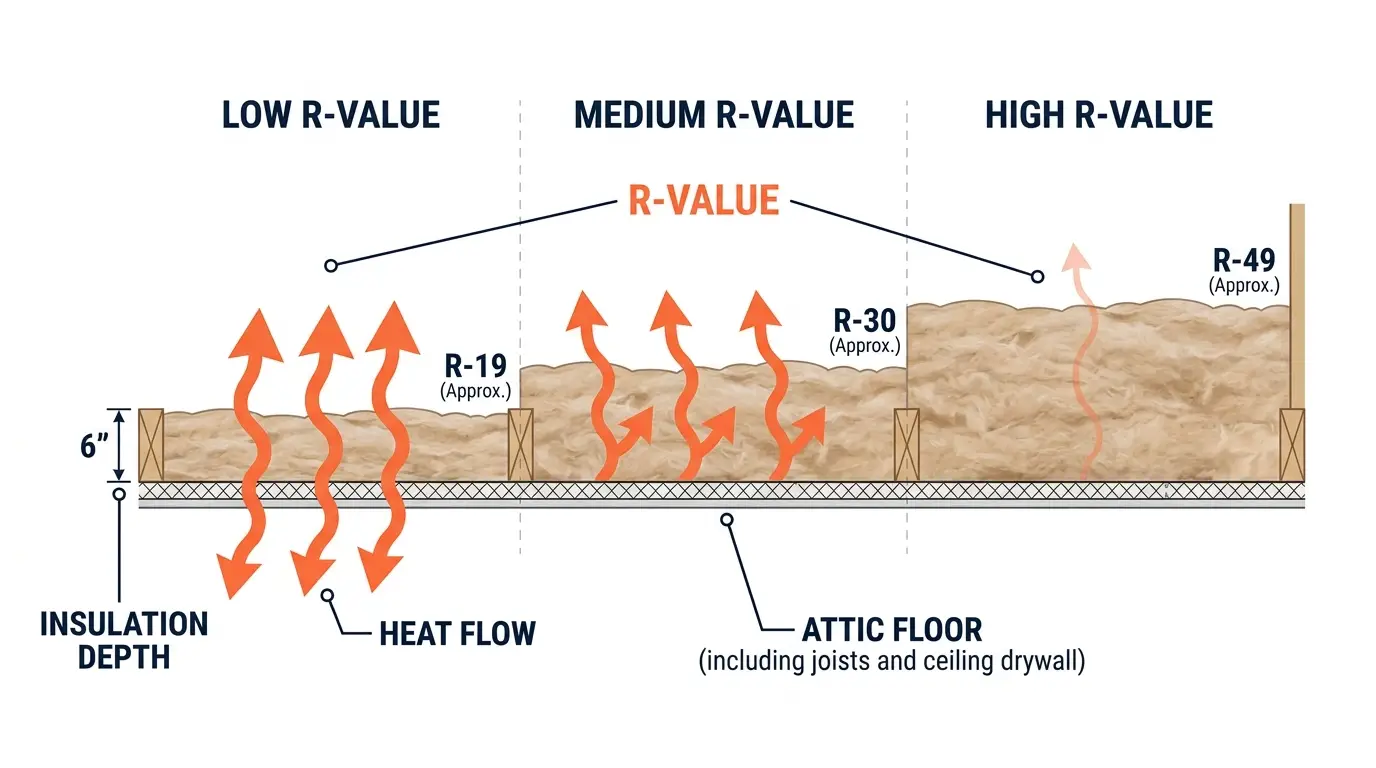

R-value gives you a single, comparable number for how hard a material fights heat moving through it. A higher R-value means slower heat transfer, which in practice means a house that holds its temperature, an HVAC system that runs less, and lower energy bills. R-value is additive: a layer of R-30 over an existing R-19 gives you roughly R-49. It is also per-inch dependent, different materials deliver different R-value per inch of thickness, so two insulation jobs of the same depth are not necessarily equal.
R-value targets for Maryland and Virginia
Maryland and Virginia sit in Climate Zone 4. The U.S. Department of Energy recommends roughly R-49 to R-60 in the attic, R-13 to R-21 in walls, and R-25 to R-30 in floors over unconditioned space. The reality in most older homes here: attics are R-19 to R-30, well short of target. That gap is one of the most cost-effective things a homeowner can close, but only after air leaks are sealed, because R-value does nothing about air that simply bypasses the insulation.
Common problems with R-value
Not enough total R-value
The most common issue by far: an attic insulated to 1980s or 1990s standards (R-19 to R-30) that is well below today's R-49 to R-60 target. The house was "insulated," just not enough, and the homeowner has no easy way to see the shortfall.
Compressed insulation
R-value depends on the air the material traps. Insulation that has been compressed, batts stuffed into a tight cavity, storage boxes set on attic insulation, loses R-value in proportion to how much it is crushed. Compressed R-30 might really be performing at R-20.
Gaps, voids, and uneven coverage
R-value is only delivered where the insulation actually is. Gaps around can lights, missed bays, and thin spots create thermal shortcuts that drag the whole assembly's real-world performance far below its rated R-value.
Air leaks that bypass the insulation
R-value rates resistance to heat conducting through a material. It does nothing about heat carried by air leaking through gaps in the assembly. An attic with great R-value but unsealed top plates, chases, and penetrations still loses heat fast. Air-sealing has to come first.
How to evaluate R-value in your home
Attic R-value is the easiest to check yourself, and the one that matters most in the MD/VA climate:
- Measure the depth: in the attic, measure the insulation depth with a ruler. As a rough guide, modern target depths land around 16 to 22 inches depending on the material.
- Check for even coverage: look across the whole attic, not one spot. Thin areas, bare joists showing through, and missed bays are all lost R-value.
- Look for compression: anywhere something is stored on the insulation, or batts are crammed in tight, the R-value is reduced.
- Check for air-sealing first: note gaps around light fixtures, the attic hatch, plumbing and wiring penetrations, and the top of interior walls. Sealing those comes before adding R-value.
