What is Low-E Glass?
Low-E is a microscopically thin, invisible metallic coating on window glass that reflects radiant heat while still letting light through. Paired with an argon or krypton gas fill sealed between the panes, it is what makes a modern window energy-efficient.
Jim Dodson, HAAG Master Inspector · #992109047 Low-E (short for low-emissivity) is a transparent metallic-oxide coating applied to the glass inside a sealed insulated window. It reflects radiant heat: in winter it bounces interior heat back inside, in summer it reflects the sun's heat back outside, all while letting visible light pass through. Low-E coatings work hand in hand with the inert gas fill sealed between the panes, argon or krypton, and together those two features account for most of a modern window's insulating performance. Nearly every quality window JDH installs in Maryland and Virginia is Low-E.
What it does
Heat moves three ways: conduction, convection, and radiation. Low-E targets the radiant heat, the infrared energy that glass would otherwise soak up and re-radiate straight through. The coating has very low emissivity, meaning it is bad at radiating heat, so instead it reflects it. In a Maryland winter, that keeps your furnace's heat from escaping through the window. In a Virginia summer, it bounces the sun's infrared load back outside before it cooks the room. The coating is wavelength-selective: it reflects infrared while still passing visible light, so the glass still looks clear.
The other half: argon and krypton gas fill
Low-E handles radiant heat. The gas fill handles conductive heat, and the two are always specified together. The sealed cavity between the panes of an insulated glass unit is not empty air, it is filled with a heavy, inert, non-toxic gas that conducts heat far worse than air does.
- Argon is the standard fill. It is inexpensive, widely available, and roughly one-third less conductive than air. Argon performs best in a standard insulated-glass cavity of about half an inch, which is why it is the default in most double-pane windows JDH installs.
- Krypton is the premium fill. It insulates significantly better than argon, but it costs much more. Krypton's advantage is in narrow cavities: in triple-pane windows or thin-profile units where there is not room for argon's optimal half-inch gap, krypton delivers strong performance in a quarter-inch space. Some high-end units use an argon-krypton blend to balance cost and performance.
- The gas slowly escapes over the life of the window, roughly one percent per year through a healthy seal. A window that has gone foggy between the panes has lost its seal, which means the gas is gone and moisture has gotten in. At that point it performs like plain double-pane glass.
Where it sits

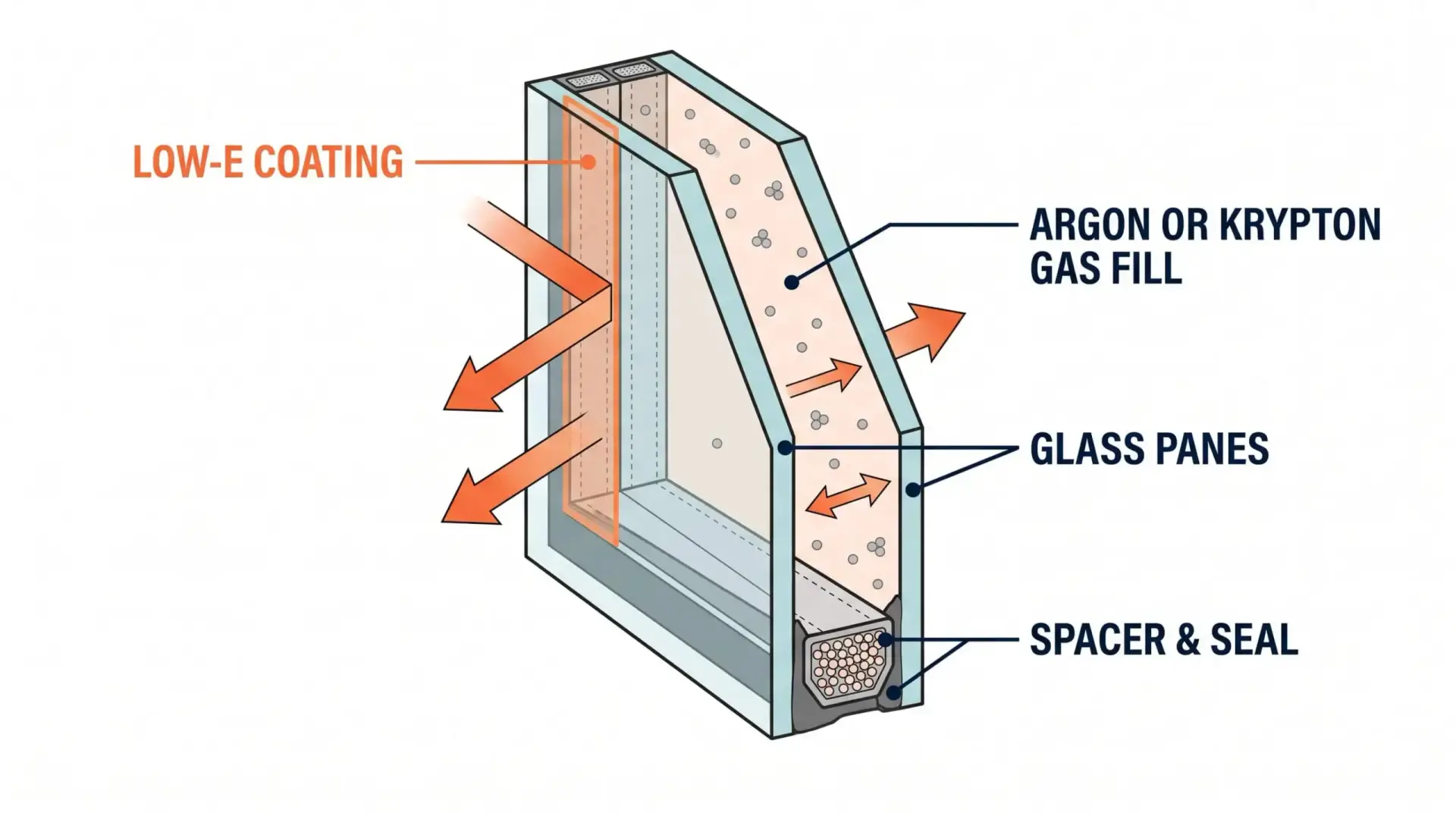

The Low-E coating is applied to one of the interior glass surfaces, the faces that point into the sealed cavity, so it is never exposed to fingers, weather, or cleaning and cannot be scratched off. The argon or krypton gas fills that same sealed cavity, held in by the spacer and the edge seal. You cannot see or touch either one. Their combined effect shows up on the NFRC label as the window's U-factor and its SHGC (Solar Heat Gain Coefficient).
Common problems with Low-E and gas fill
No Low-E at all (plain glass)
Older single-pane and early double-pane windows have clear, uncoated glass. They lose radiant heat in every direction. If your old windows feel cold to the touch in winter and hot in summer, they are almost certainly not Low-E.
Wrong Low-E tuning for the climate
Low-E coatings are tuned for different climates by their solar heat gain. A high-gain "northern" coating on a west-facing Virginia window overheats the room in summer; a low-gain "southern" coating everywhere kills useful winter warmth. The MD/VA mixed climate needs a balanced coating.
Failed seal: foggy glass, gas gone
The classic "foggy window." The edge seal failed, the argon or krypton leaked out, and moisture got in between the panes. The haze cannot be wiped away because it is inside the unit. The window now insulates like plain glass and looks bad. The sealed glass unit has to be replaced.
"Low-E" claimed but not verified
Low-E and the gas fill are both invisible, which makes them easy to claim and hard to confirm. Do not take a salesperson's word. The NFRC label is the proof.
How to check for Low-E on your windows
Both the coating and the gas fill are invisible, but there are reliable ways to confirm them:
- The NFRC label: a U-factor at or below 0.30 and a moderate SHGC almost always means Low-E glass with a gas fill. Plain double-pane cannot hit those numbers.
- The flame test: hold a lit match or lighter near the glass at an angle. You will see several reflected flames, one per glass surface. If one reflection is a slightly different color or tint than the others, that is the Low-E coating.
- Look for fog or haze between the panes: a hazy area you cannot wipe off, on either side, means the seal failed and the gas fill is gone.
- Ask for the spec on a quote: a JDH window proposal names the exact glass package, Low-E type, and gas fill (argon or krypton) for your configuration.
