What is Ice & Water Shield?
Ice and water shield is a self-adhered, waterproof rubberized membrane installed directly on the roof deck in critical areas: along the eaves, in valleys, and around penetrations. It bonds to the deck and seals around every nail, providing the only true waterproof layer of the roof system.
Jim Dodson, HAAG Master Inspector · #992109047 Ice and water shield is a self-adhered, waterproof rubberized asphalt membrane installed directly on the roof deck before the underlayment and shingles. Unlike standard underlayment, it bonds to the deck and self-seals around every nail driven through it. Code in Maryland and Virginia requires it along the eaves (at least 24 inches past the interior wall line) and in valleys; JDH installs it in additional vulnerable areas as standard practice.
What it does
Ice and water shield is the only truly waterproof layer in a typical asphalt-shingle roof system. Shingles shed water, underlayment resists water, but ice and water shield seals water out, even at penetration points. Its primary job in our region is to prevent leaks from ice damming: when snow melts on the upper roof, refreezes at the cold eave, and backs up under the shingles. The self-sealing property is what makes it different. Every nail driven through it is squeezed back tight by the rubberized asphalt, so even fastener penetrations stay watertight. That is why it also goes in valleys, around chimneys, around skylights, and along rake edges on exposed roofs.

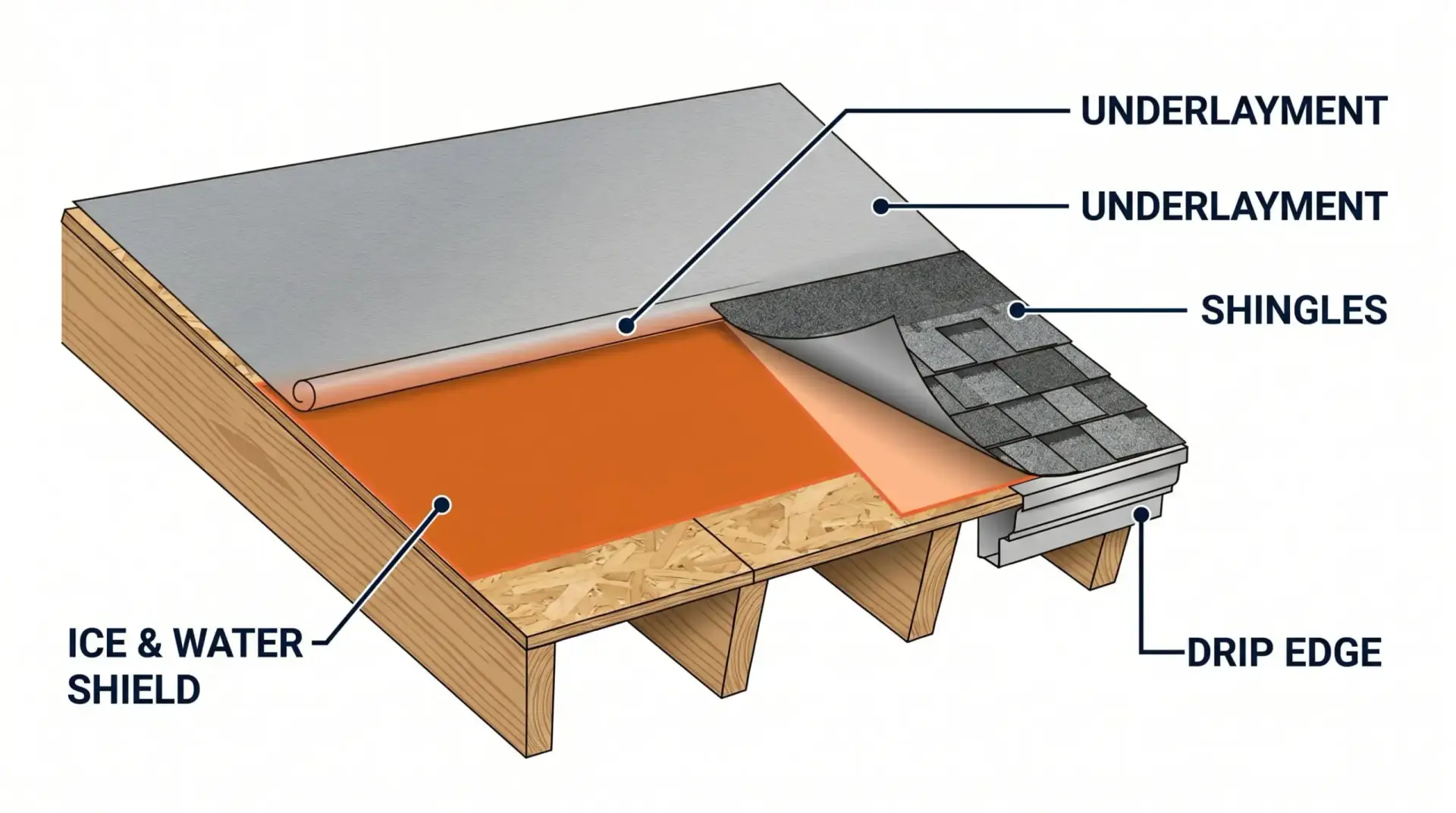

Where it sits
Ice and water shield sits directly on the roof deck (OSB or plywood), beneath the underlayment and shingles. The code-required application is a continuous strip along every eave, extending up from the edge at least 24 inches past the interior wall plane of the house (typically 3 to 6 feet of coverage depending on the eave depth). It also goes in every valley as a continuous strip, and around every roof penetration. On low-slope sections (under 4:12 pitch), JDH applies it across the entire deck. Drip edge flashing is installed over it at the very edge of the roof.
Common problems with ice and water shield
Skipped entirely on older roofs
Pre-2000 Maryland and Virginia roofs often have no ice and water shield at all. Once the property has a single ice-dam event, the leak shows up as ceiling staining at the eaves. The fix is tear-off and proper install on the next roof.
Installed only at the very edge (not past the wall line)
Code requires the shield to extend at least 24 inches past the interior wall plane, not just 24 inches past the eave edge. On a 24-inch overhang, that means a 4-foot strip minimum. Roofers who measure from the edge instead of the wall create a leak waiting for the right freeze.
Missing in valleys
Valleys concentrate water from two roof slopes. A valley without ice and water shield underneath relies entirely on the valley metal or shingle interweave for waterproofing, which always fails eventually. Visible only at tear-off.
Applied over dirty or wet decking
The self-adhered membrane will not bond properly to a dusty, wet, or frosty deck. Roofers in a hurry skip the prep, the bond fails, and the membrane lifts in wind. Quality install requires a clean, dry, primed deck.
How to verify ice and water shield on your roof
Like underlayment, ice and water shield is invisible after the shingles go on. The way to verify it is during install or by demanding documentation. Things to confirm when getting a new roof:
- It is named on the contract: "ice and water shield" alone is not enough. Look for the specific product (e.g., Owens Corning WeatherLock, GAF WeatherWatch, Grace Ice & Water Shield).
- Coverage is specified: the contract should explicitly say "minimum 24 inches past the interior wall plane at all eaves, full valleys, and around all penetrations."
- Photo evidence: ask for photos of the ice and water shield installed before the underlayment covers it. A reputable roofer will document this without being asked.
- Watch for ceiling stains at the eaves after a hard freeze: water marks on the ceiling along the exterior walls in winter are a classic ice-dam failure signature. Means the shield is missing or undersized.
